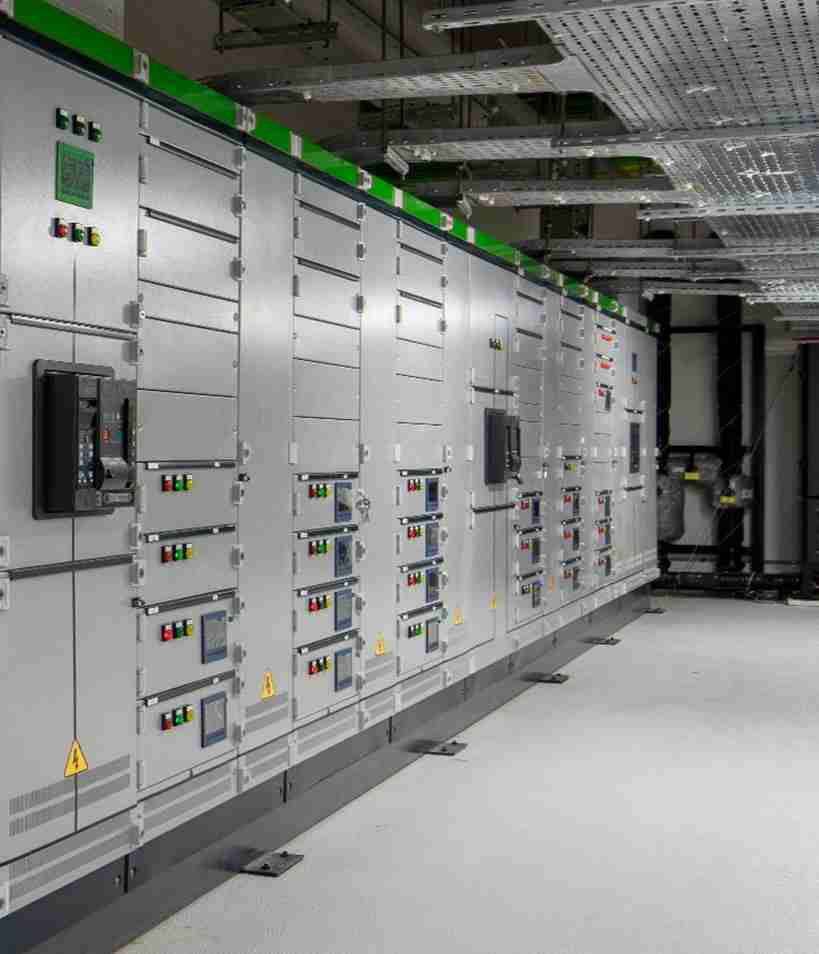

Joule Logix Power Distribution Systems

Joule Logix Power Distribution Systems

  • UL 891 Switchboards rated through 5,000 A, 600 VAC, 3 Ph, 35, 65, or 100 KAIC
  • Type 1, 12, 3R Enclosures with dead front for safe and reliable operation in the actual site ambient temperature, altitude, humidity, and other environmental conditions.
  • ACB Main Circuit Breaker, Magnetic and Electronic Trip Units
    • Optional Smart Circuit Breakers with communications, digital display, power quality data, programmable functions.
    • Protective and Safety Features including optional LSI, LSIG, LIS with Arc Flash Reduction,
  • MCCB Feeder Circuit Breakers, Magnetic and Electronic Trip Units, optional safety and programmable functions UL Listed and Marked, and other regulatory agency approval as required

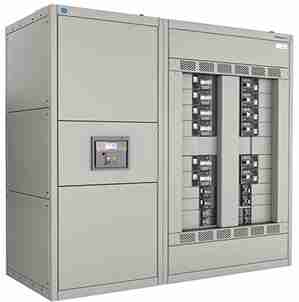

Joule Logix Power Distribution Systems

Power Distribution Centers (PDC), Motor Control Centers (MCC) LV and MV

  • Switchgear, Switchboards, Panelboards, VFDs, Load Centers, Transformers, Motor Control Centers (MCC), Programmable Logic Control (PLC)
  • Structural Skid Mounted Steel Buildings with climate control, interior/exterior lighting, equipment access doors, insulated siding/roofing, insulating safety floor mats.
  • Cable Tray, Conduit, Tray Cable, Tray Control Wiring, CAT VI wiring, all wire and cable terminations, grounding bus, bonding, external grounding lugs.

Factory Acceptance Testing, cable dielectric testing, one line and schematic confirmation, Circuit Breaker Setting, 480 VAC 3 Ph Power-Up,  and full climate control systems testing
